定义了与HSM通信的命令、数据结构和接口。更多...

#include "Std_Types.h"

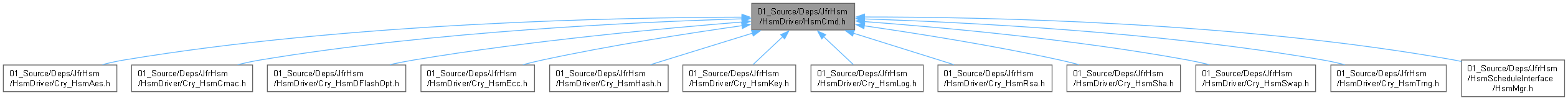

HsmCmd.h 的引用(Include)关系图:

此图展示该文件被哪些文件直接或间接地引用了:

结构体
struct	HsmCmd_SecureBootInfoType
	安全启动信息结构体更多...
struct	HsmCmd_Interface
	HSM命令接口结构体更多...
struct	AES_GCM_Typedef
	AES-GCM 上下文结构体更多...
struct	HsmCmd_Local
	HSM命令本地数据结构体更多...
struct	HsmCmd_Descriptor
	HSM命令描述符结构体更多...

宏定义
#define	HSMCMD_REQUEST_NOT_HANDLED 0
	通用错误码
#define	HSMCMD_REQUEST_INPROGRESS 1
#define	HSMCMD_REQUEST_HANDLED 2
#define	HSMCMD_REQUEST_TIMEOUT 0xFFFFFFFF
#define	HSMCMD_REQUEST_SYNC_FORMAT_ERROR 3
	同步请求格式错误
#define	HSMCMD_INVALID_KEY_LENGTH_ERROR 4

类型定义
typedef void(*	HsmCmd_Callback) (HsmCmd_Interface *itf)
	HSM命令回调函数指针类型

枚举
enum	HsmCmd_CryCmdEnum { HSM_COMMAND_AES128_ECB = 0u , HSM_COMMAND_AES128_CBC = 1u , HSM_COMMAND_RSA2048 = 2u , HSM_COMMAND_CRYPT_AES_ECB_KEYID = 3u , HSM_COMMAND_CRYPT_AES_CBC_KEYID = 4u , HSM_COMMAND_CRYPT_RSA_KEYID = 5u , HSM_COMMAND_CRYPT_AES_CTR = 6u , HSM_COMMAND_CRYPT_AES_OFB = 7u , HSM_COMMAND_CRYPT_AES_CFB = 8u , HSM_COMMAND_CRYPT_AES_XTS = 9u , HSM_COMMAND_CRYPT_AES_GCM = 10u }
	HSM 加密命令枚举更多...
enum	HsmCmd_CryptmEnum { HSM_COMMAND_CRYPT_AES_ECB = 0u , HSM_COMMAND_CRYPT_AES_CBC = 1u , HSM_COMMAND_CRYPT_RSA = 2u }
	HSM 加密算法枚举更多...
enum	HsmCmd_KeyEnum { HSM_COMMAND_KEY_PLAIN = 0u , HSM_COMMAND_KEY_SLOT = 1u }
	HSM 密钥类型枚举更多...
enum	HsmCmd_HashEnum { HSM_COMMAND_HASH_SHA256 = 0u , HSM_COMMAND_HASH_CMAC = 1u , HSM_COMMAND_HASH_MD5 = 2u , HSM_COMMAND_HASH_SHA1 = 3u , HSM_COMMAND_HASH_NONE = 4u }
	HSM 哈希算法枚举更多...
enum	HostCmd_MacEnum { HSM_COMMAND_MAC_CMAC = 1u , HSM_COMMAND_MAC_CMAC_KEYID = 2u }
	主机 MAC 命令枚举更多...
enum	HsmCmd_SECUREBOOT_CHECK_Enum { HSM_COMMAND_SECUREBOOT_CHECK = 0u , HSM_COMMAND_SECUREBOOT_SAVE = 1 }
	HSM 安全启动检查命令枚举更多...
enum	HsmCmd_CmdInternalEnum { HSMCMD_IDLE = 0x00000000u , HSMCMD_OCCUPIED = 0x00000001u , HSMCMD_SYNC = 0x01010001u , HSMCMD_GET_AB_STATUS = 0x01020001u , HSMCMD_INJECT_KEY_PLAIN = 0x02010001u , HSMCMD_INJECT_KEY_ENCRYPT = 0x02010002u , HSMCMD_DESTRUCT_KEY = 0x02020001u , HSMCMD_CHECK_KEY = 0x02030001u , HSMCMD_ENCRYPT_SLOT = 0x03010001u , HSMCMD_ENCRYPT_SLOT_START = 0x03010002u , HSMCMD_ENCRYPT_SLOT_UPDATE = 0x03010003u , HSMCMD_ENCRYPT_SLOT_FINISH = 0x03010004u , HSMCMD_ENCRYPT_PLAIN = 0x03010005u , HSMCMD_ENCRYPT_PLAIN_START = 0x03010006u , HSMCMD_ENCRYPT_PLAIN_UPDATE = 0x03010007u , HSMCMD_ENCRYPT_PLAIN_FINISH = 0x03010008u , HSMCMD_DECRYPT_SLOT = 0x03020001u , HSMCMD_DECRYPT_SLOT_START = 0x03020002u , HSMCMD_DECRYPT_SLOT_UPDATE = 0x03020003u , HSMCMD_DECRYPT_SLOT_FINISH = 0x03020004u , HSMCMD_DECRYPT_PLAIN = 0x03020005u , HSMCMD_DECRYPT_PLAIN_START = 0x03020006u , HSMCMD_DECRYPT_PLAIN_UPDATE = 0x03020007u , HSMCMD_DECRYPT_PLAIN_FINISH = 0x03020008u , HSMCMD_HASH_CMDALL = 0x04010001u , HSMCMD_HASH_START = 0x04010002u , HSMCMD_HASH_UPDATE = 0x04010003u , HSMCMD_HASH_FINISH = 0x04010004u , HSMCMD_TRNG = 0x05010001u , HSMCMD_CMAC = 0x06010001u , HSMCMD_CMAC_START = 0x06010002u , HSMCMD_CMAC_UPDATE = 0x06010003u , HSMCMD_CMAC_FINISH = 0x06010004u , HSMCMD_CMAC_DONE = 0x06010005u , HSMCMD_OPT_HANDLE = 0x07010001u , HSMCMD_READ_DFLASH_INFO = 0x08010001u , HSMCMD_ERASE_DFLASH_INFO = 0x08010002u , HSMCMD_ECC_ENCRYPT = 0x09010001u , HSMCMD_CERT_VERIFY_SLOT = 0x09020001u , HSMCMD_ECC_DECRYPT = 0x09020002u , HSMCMD_SECURE_BOOT_CHECK = 0x0A010001u , HSMCMD_HMAC_MD5 = 0x0B010001u , HSMCMD_HMAC_SHA1 = 0x0B010002u , HSMCMD_HMAC_SHA256 = 0x0B010003u }
	HSM 内部命令枚举更多...

函数
Std_ReturnType	HsmCmd_ShakeHand (HsmCmd_Descriptor *desc, HsmCmd_Callback callback)
	主机与HSM进行握手
Std_ReturnType	HsmCmd_RequestCmd (HsmCmd_Descriptor *desc, HsmCmd_Callback callback)
	主机向HSM请求命令
void	HsmCmd_ReleaseDesc (HsmCmd_Descriptor *desc)
	释放命令描述符

详细描述

定义了与HSM通信的命令、数据结构和接口。

宏定义说明

◆ HSMCMD_INVALID_KEY_LENGTH_ERROR

#define HSMCMD_INVALID_KEY_LENGTH_ERROR 4

无效的密钥长度错误

◆ HSMCMD_REQUEST_HANDLED

#define HSMCMD_REQUEST_HANDLED 2

请求已处理

◆ HSMCMD_REQUEST_INPROGRESS

#define HSMCMD_REQUEST_INPROGRESS 1

请求处理中

◆ HSMCMD_REQUEST_TIMEOUT

#define HSMCMD_REQUEST_TIMEOUT 0xFFFFFFFF

请求超时
